Simpson Strong-Tie

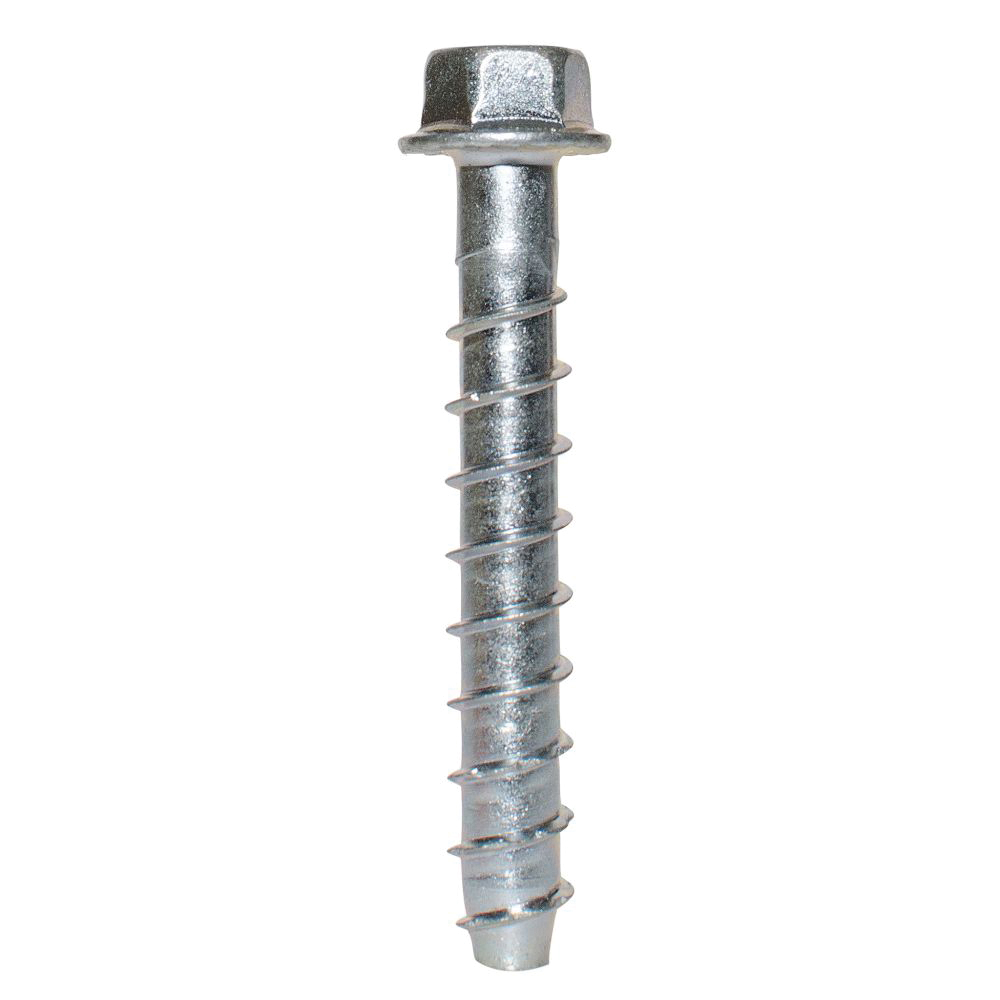

Simpson Strong-Tie Titen HD Series THD37300H CTN Screw Anchor, 3/8 in Dia, 3 in L, Carbon Steel, Zinc, Hex Head, 50/PK
- Diameter: 3/8 in
- Drill Size: 3/8 in
- Finish: Zinc
- Fixture Thickness: 1/2 to 9/16 in
- Head Type: Hex
- Model #: THD37300H CTN
- UPC #: 707392116813
- SKU: 39211681
Product Details
The original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titan HD® offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titan HD® demonstrates industry leading performance even in seismic conditions. The stainless-steel Titan HD® is the optimal choice for applications in corrosive or extreme environments such as salt water or when chemical or corrosive solutions are present.Item Specifications
| Diameter | 3/8 in |
|---|---|
| Drill Size | 3/8 in |
| Finish | Zinc |
| Fixture Thickness | 1/2 to 9/16 in |
| Head Type | Hex |
| Length | 3 in |
|---|---|
| Material | Carbon Steel |
| Minimum Clearance | 1/2 in |
| Minimum Concrete Thickness | 4 to 5 in |
| Tensile Strength | 110000 psi |
MORE DETAILS:
- Simpson_Strong_Tie_100094745_Specification_Sheet.pdf
- Application: For bracing and formwork
