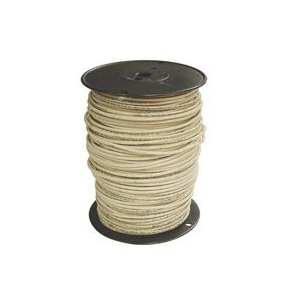

Southwire 20494101 Series Building Wire, White Sheath, 6 AWG Wire, 1-Conductor, 500 ft L, Copper Conductor, Stranded

Southwire

Southwire 20494101 Series Building Wire, White Sheath, 6 AWG Wire, 1-Conductor, 500 ft L, Copper Conductor, Stranded

Southwire 20494101 Series Building Wire, White Sheath, 6 AWG Wire, 1-Conductor, 500 ft L, Copper Conductor, Stranded
  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Current Rating: 65 A
  • Length: 500 ft
  • Number of Conductors: 1
  • Model #: 20494101
  • UPC #: 032886231629
  • SKU: 88623162

Availability

Product Details

Southwire Building Wire, THHN, Wire Size: 6 AWG, 500 ft L, Number of Conductors: 1, Strands per Conductor: 19, Conductor Material: Copper, Conductor Insulation: PVC, Stranded/Solid: Stranded, Sheath Material: Nylon, Sheath Color: White, Sheath Diameter: 1/4 in, 600 V, 65 A, Operating Temperature: 194 deg F

Item Specifications

Conductor InsulationPVC
Conductor MaterialCopper
Current Rating65 A
Length500 ft
Number of Conductors1
Operating Temperature194 deg F
Sheath ColorWhite
Sheath Diameter1/4 in
Sheath MaterialNylon
Stranded/SolidStranded
Strands per Conductor19
TypeTHHN
Voltage Rating600 V
Wire Size6 AWG
